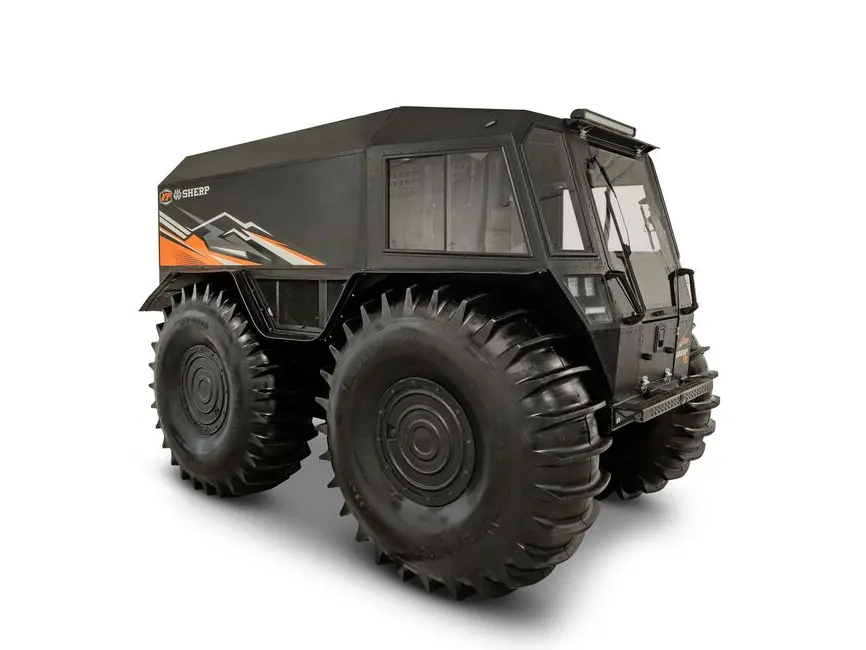

Argo SHERP PRO XT 2021

Notes :

Manufacturier :
ARGO
Modèle :
ARGO SHERP PRO XT
Année :
2022
Type :
ARGO SHERP SERIES
ENGINE MAKE :
DOOSAN
DISPLACEMENT :
1.8 L
FUEL TYPE :
DIESEL
CYLINDER :
3
EMISSION STANDARDS :
EPA, STAGE 5/TIER 4 FINAL
DOC :
DOC+DPF/DOC ONLY
COOLING SYSTEM :
LIQUID
HORSEPOWER - MAX :
55 HP (41 KW)
TORQUE - MAX :
190 NM
FUEL CONSUMPTION :
1.3 - 2.2 GPH (5-8 LPH)
VOLTAGE :
12 V
ALTERNATOR CAPACITY :
140 AMP
STARTING :
ELECTRIC
BATTERY TYPE - MAIN/BACKUP :
LEAD ACID
TRANSMISSION TYPE :
6-SPEED MANUAL
FINAL DRIVE :
ENCLOSED CHAINS IN OIL BATH
STEERING :
TWO LEVER HYDRAULIC SKID STEERING
PAYLOAD :
2,645 LBS (1200 KG)
PEOPLE CAPACITY :
UP TO 8
MAX CLIMB/DESCEND GRADE :
35 DEGREES
MAX SIDEHILL GRADE :
30 DEGREES
OVERALL LENGTH :
157" (3,988 MM)
OVERALL WIDTH :
101“ (2,570 MM)
OVERALL HEIGHT :
118“ (2,846 MM)
GROUND CLEARANCE :
26“ (660 MM)
WHEELBASE :
86“ (2,200 MM)
TOWING CAPACITY :
5,180 LBS (2,350 KG) FRONT/REAR
TONGUE WEIGHT :
330 LBS (150 KG) FRONT/REAR
DRY WEIGHT :
5,291 LBS (2,400 KG)
FUEL TANK CAPACITY :
25 GAL (95 L)
AUXILIARY FUEL CAPACITY :
UP TO 61.2 GAL (231.6 L) 15.3 GAL (57.9 L) CAPACITY WHEEL CANNISTER X4
INTERIOR VOLUME - OVERALL :
275.5 FT3 (7.8 M3)
INTERIOR VOLUME - FRONT :
70.5 FT3 (2.0 M3)
INTERIOR VOLUME - REAR :
205 FT3 (5.8 M3)
SPEED - LAND :
25 MPH (40 KM/H)
SPEED - WATER :
4 MPH (6 KM/H)
SUSPENSION :
ADJUSTABLE PNEUMATIC CIRCULATING TIRES
BRAKES :
HYDRAULIC DUAL CALIPER/DUAL DISC
PARKING BRAKES :
HANDBRAKE
TIRE SIZE :
71X23-25 (TUBELESS, ULTRA-LOW PRESSURE)
WHEELS :
STEEL BEADLOCK
GROUND PRESSURE :
0.9 - 2.1 PSI (0.07 - 0.15 KG/CM2)
PRESSURE CONTROL :
ADJUSTABLE BY EXHAUST GAS
CABIN :
ALUMINUM HARD TOP
FRAME :
STEEL HOT DIP GALVANIZED
ROPS (CERTIFICATION) :
FULL ROPS (ISO 3471)
FRONT SEATS - 2 FRONT FACING :
STANDARD WITH 3 POINT SEATBELTS
REAR SEATS - 2 FRONT FACING :
OPTIONAL
REAR SEATS - 4 FRONT FACING :
OPTIONAL
REAR SEATS - 6 SIDE FACING :
OPTIONAL
INSTRUMENTATION CONTROL :
MULTIFUNCTIONAL DIGITAL DISPLAY
REVIEW CAMERA :
STANDARD
HEATER :
STANDARD
AIR CONDITIONER :
STANDARD
HEADLIGHTS :
LED - HI/LOW BEAM
LIGHTBAR - REAR :
OPTIONAL
LIGHTBAR - FRONT :
OPTIONAL
BUMPERS :
FRONT AND REAR
HITCH :
2″ RECEIVER - FRONT AND REAR
WINCH :
OPTIONAL 9,000 lb
BILGE PUMP :
STANDARD
GLOVE BOX :
STANDARD
CUP HOLDERS :
STANDARD
STORAGE BOXES - UNDER FLOOR :
STANDARD
STORAGE LOCKERS - 2 PCS :
OPTIONAL
MIRRORS :
STANDARD
REAR SIDE WINDOW - 2 PCS :
STANDARD
WARRANTY :
24 MONTHS OR 1,000 OPERATION HOURS
COLORS :
BLACK, WHITE
